ProAc Speakers
Every ProAc loudspeaker is hand-crafted, with our technicians individually responsible for the building and testing of each unit, from the flagship Response models to the diminutive Tablette. Build quality alone is unsurpassed, each cabinet being meticulously constructed, damped and finished in real wood veneer.
Only the very finest components are used in ProAc loudspeakers, with each new model reflecting the very leading edge of audio technology. Indeed many models now incorporate dedicated drive units using our own basket, cone and magnet assemblies. Drive unit performance is fine-tuned through expensive and sophisticated crossover networks.
Only the very finest components are used in ProAc loudspeakers, with each new model reflecting the very leading edge of audio technology. Indeed many models now incorporate dedicated drive units using our own basket, cone and magnet assemblies. Drive unit performance is fine-tuned through expensive and sophisticated crossover networks.

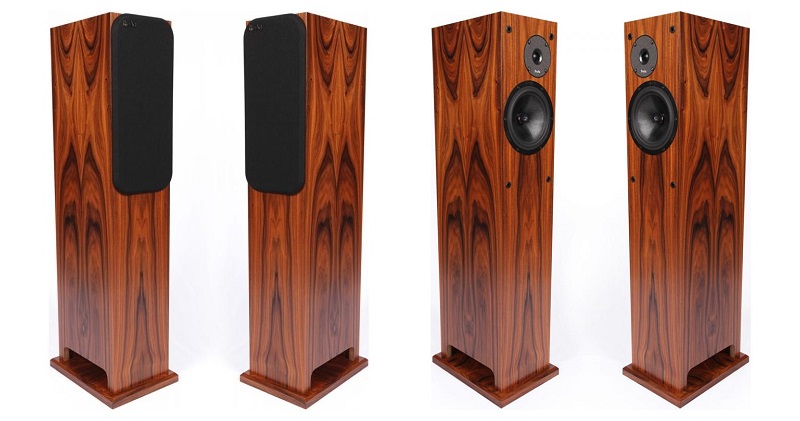

ProAc Response D28 Loudspeakers
To improve on the highly acclaimed Response D25 would have been a daunting task but for the development of a new, slim, elegant cabinet design giving greater dispersion and featuring side venting to give the lowest frequencies more power and authority. The faultless reproduction throughout the frequency range, which made the D25 such a world-beater, has been greatly intensified with the introduction of the Response D28.
The original bass driver and tweeter have been retained, but there the similarity ends. Still using the highly efficient and sensitive mid/bass driver custom built for ProAc, the crossover network has been further tuned to match the improved cabinet design and bass loading, resulting in a significant step forward in sound reproduction. A slimmer front baffle aids dispersion and increases soundstage, whilst the new port and vented arrangements found on much more expensive ProAc floorstanders, give the bottom octaves greater feel and extension. This gives the D28 slightly more efficiency and good quality valve or class 'A' transistor amplifiers with an output as low as 10 watts per channel will produce fine results in all but the very largest of rooms.
These beautiful new speakers feature the traditional ProAc cabinet quality with high rigidity and heavy damping and are finished in a range of real wood veneers. The new plinth and vent design arrangement not only produce a quality of bass found in much larger speakers, but also offer a better interaction with the listening room, making cabinet placement less critical. The Response D28 offers superb sound quality with a detailed soundstage and natural, extended, powerful bass response. These sonic attributes, coupled with ProAc's legendary open midrange quality, make the Response D28 a winner in its class.
The original bass driver and tweeter have been retained, but there the similarity ends. Still using the highly efficient and sensitive mid/bass driver custom built for ProAc, the crossover network has been further tuned to match the improved cabinet design and bass loading, resulting in a significant step forward in sound reproduction. A slimmer front baffle aids dispersion and increases soundstage, whilst the new port and vented arrangements found on much more expensive ProAc floorstanders, give the bottom octaves greater feel and extension. This gives the D28 slightly more efficiency and good quality valve or class 'A' transistor amplifiers with an output as low as 10 watts per channel will produce fine results in all but the very largest of rooms.
These beautiful new speakers feature the traditional ProAc cabinet quality with high rigidity and heavy damping and are finished in a range of real wood veneers. The new plinth and vent design arrangement not only produce a quality of bass found in much larger speakers, but also offer a better interaction with the listening room, making cabinet placement less critical. The Response D28 offers superb sound quality with a detailed soundstage and natural, extended, powerful bass response. These sonic attributes, coupled with ProAc's legendary open midrange quality, make the Response D28 a winner in its class.
Description: Two-way, reflex-loaded, floorstanding loudspeaker.
Drive-units: 1" (25mm) silk-dome tweeter, 6.5" (165mm) coated
polypropylene-cone woofer. Frequency range: 20Hz–30kHz. Nominal
impedance: 8 ohms. Sensitivity: 88.5dB/W/m. Recommended amplification:
10–200W.
Dimensions: 42.5" (1080mm) H (on plinth with conical feet) by 8" (204mm) W by 11.25" (286mm) D. Weight: 60 lbs (27kg).
Finishes: Maple, bird's-eye maple, cherry, black ash, mahogany, ebony real-wood veneers.
Dimensions: 42.5" (1080mm) H (on plinth with conical feet) by 8" (204mm) W by 11.25" (286mm) D. Weight: 60 lbs (27kg).
Finishes: Maple, bird's-eye maple, cherry, black ash, mahogany, ebony real-wood veneers.

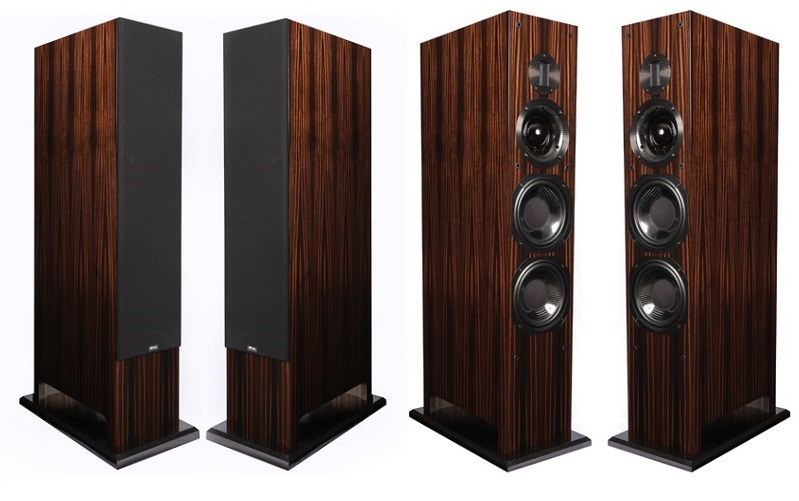

ProAc Response D48 Loudspeakers
After a year in research and development the D48 is now ready for production.
Areas of improvement have been mid-range detail and a cleaner, faster and more extended bass response. A new studio monitor quality bass driver was designed for the D48. It features a special impregnated cone and mid frequencies are tuned by a cap of greater size than standard. This gives the new unit greater mid-range detail along with excellent bass control giving a tighter and more extended response. The two new bass drivers are each loaded through our special floor loading with side vents, this makes the loudspeaker easier to sight and reacts less to surroundings. The two bass units are then seamlessly mated to our ribbon or dome tweeter depending on your preference. With such a large slim floor standing design the sound stage is superb being very large and with pinpoint imagery. Another achievement for the D48 is its ability to create large orchestral works as well as heavy rock music.
The D48 has a high quality filter network designed by Stewart Tyler comprising of the finest components, ProAc cable on a special board. The filter is also split for bi-amping and bi-wiring. This is one of the best designs from ProAc and should please all audio files regardless of their taste in music.
Areas of improvement have been mid-range detail and a cleaner, faster and more extended bass response. A new studio monitor quality bass driver was designed for the D48. It features a special impregnated cone and mid frequencies are tuned by a cap of greater size than standard. This gives the new unit greater mid-range detail along with excellent bass control giving a tighter and more extended response. The two new bass drivers are each loaded through our special floor loading with side vents, this makes the loudspeaker easier to sight and reacts less to surroundings. The two bass units are then seamlessly mated to our ribbon or dome tweeter depending on your preference. With such a large slim floor standing design the sound stage is superb being very large and with pinpoint imagery. Another achievement for the D48 is its ability to create large orchestral works as well as heavy rock music.
The D48 has a high quality filter network designed by Stewart Tyler comprising of the finest components, ProAc cable on a special board. The filter is also split for bi-amping and bi-wiring. This is one of the best designs from ProAc and should please all audio files regardless of their taste in music.
ProAc Carbon Pro 8 Speakers
Loudspeaker companies have toyed with the use of carbon fibre in loudspeakers, mainly for the use in cabinets. Carbon fibre coned drive units are rarely seen and used, we believe the type of carbon fibre and its preparation that we are using is unique.
For the past year ProAc has been researching the use of pure carbon fibre due to its qualities and resonances in the manufacture of drive unit cones. Its incredible stiffness makes it ideal for a drive unit cone, and its piston like qualities are perfect for moving air at low frequencies without distortion. The new Carbon Pro Eight uses two carbon fibre coned bass drivers, a carbon fibre midrange horn and a carbon composite plinth.
The carbon cone is unique with a pure polymer impregnated carbon weave and polished diaphragm, the back of the cone is then specially lacquered and finally it is concentrically weighted to add appropriate mass. The 3 inch midrange dome is repositioned in the unique pure polymer impregnated carbon weave and polished horn, and midrange sounds are reproduced with uncanny realism. High frequencies are covered by the ProAc ribbon tweeter with a diaphragm lighter than a human hair giving a sweet and detailed reproduction. With these attributes the cabinet size can be reduced greatly without losing the weight and slam of a much larger conventional loudspeaker. The cabinet on the Carbon Pro Eight is a traditional mixture from ProAc of HDF materials of different thicknesses heavily damped with bitumen. Indeed the carcass including bitumen is 35 mm thick. The combination of research into carbon fibre and its ingredients have produced a stunningly accurate and detailed loudspeaker, having an electrostatic or panel quality without the drawbacks. Sound is reproduced effortlessly with incredible detail and pinpoint imagery, which often can be muddled by conventional drive units. We are sure at ProAc you will not see this type of drive unit in any other high-end loudspeaker and you will be amazed at such an open accurate and natural sound with a fast potent bass response.
For the past year ProAc has been researching the use of pure carbon fibre due to its qualities and resonances in the manufacture of drive unit cones. Its incredible stiffness makes it ideal for a drive unit cone, and its piston like qualities are perfect for moving air at low frequencies without distortion. The new Carbon Pro Eight uses two carbon fibre coned bass drivers, a carbon fibre midrange horn and a carbon composite plinth.
The carbon cone is unique with a pure polymer impregnated carbon weave and polished diaphragm, the back of the cone is then specially lacquered and finally it is concentrically weighted to add appropriate mass. The 3 inch midrange dome is repositioned in the unique pure polymer impregnated carbon weave and polished horn, and midrange sounds are reproduced with uncanny realism. High frequencies are covered by the ProAc ribbon tweeter with a diaphragm lighter than a human hair giving a sweet and detailed reproduction. With these attributes the cabinet size can be reduced greatly without losing the weight and slam of a much larger conventional loudspeaker. The cabinet on the Carbon Pro Eight is a traditional mixture from ProAc of HDF materials of different thicknesses heavily damped with bitumen. Indeed the carcass including bitumen is 35 mm thick. The combination of research into carbon fibre and its ingredients have produced a stunningly accurate and detailed loudspeaker, having an electrostatic or panel quality without the drawbacks. Sound is reproduced effortlessly with incredible detail and pinpoint imagery, which often can be muddled by conventional drive units. We are sure at ProAc you will not see this type of drive unit in any other high-end loudspeaker and you will be amazed at such an open accurate and natural sound with a fast potent bass response.

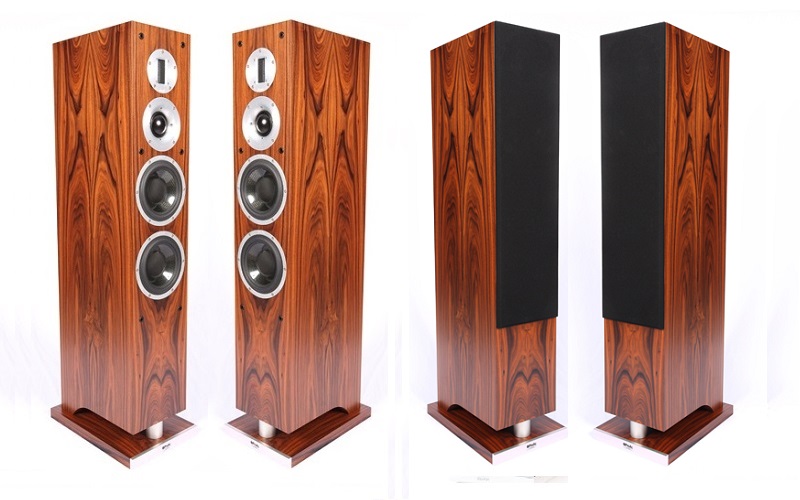

Proac K6 Loudspeakers
Following the successful incorporation of carbon fibre cone technology in the Carbon Pro Series, ProAc have been researching other materials for possible inclusion in their high end loudspeakers. The results of this research have come to fruition in the shape of the new K series which utilises cones manufactured from the material, Kevlar.
Kevlar benefits from having similar properties to carbon fibre, being light and at the same time rigid. The ProAc 6 1/2" drivers utilised in the K6 feature Kevlar cones made by the same special method as our carbon fibre coned drive units; the cone is painstakingly produced from a mould by hand, a labour intensive process taking many hours to complete.
Although Kevlar has proven to be an excellent cone material sonically, the Kevlar ProAc bass drivers require a different porting mechanism in order to realise their full potential. The bass is loaded by an almost invisible vent to produce a wonderfully weighty but exceptionally fast bass response. These drivers are seamlessly crossed over to a 2" dome midrange, the horn of which is manufactured from billet aluminium and for the high frequencies, ProAc's proven ribbon tweeter has been chosen. The cabinet on the K6 is a traditional mixture from ProAc of HDF materials of different thicknesses heavily damped with bitumen. Indeed the carcass including bitumen is 35mm thick. The combination of research into carbon fibre and its ingredients have produced a stunningly accurate and detailed loudspeaker, having an electrostatic or panel quality without the drawbacks. Sound is reproduced effortlessly with incredible detail and pinpoint imagery, which often can be muddled by conventional drive units.
The K6 is designed for audiophiles and music lovers who are looking for a true high end loudspeaker offering smooth reproduction and an impressively flat response throughout the frequency range. The legendary ProAc qualities of large soundstaging and pin-sharp imaging capabilities complete a highly musical and engaging transducer.
Although Kevlar has proven to be an excellent cone material sonically, the Kevlar ProAc bass drivers require a different porting mechanism in order to realise their full potential. The bass is loaded by an almost invisible vent to produce a wonderfully weighty but exceptionally fast bass response. These drivers are seamlessly crossed over to a 2" dome midrange, the horn of which is manufactured from billet aluminium and for the high frequencies, ProAc's proven ribbon tweeter has been chosen. The cabinet on the K6 is a traditional mixture from ProAc of HDF materials of different thicknesses heavily damped with bitumen. Indeed the carcass including bitumen is 35mm thick. The combination of research into carbon fibre and its ingredients have produced a stunningly accurate and detailed loudspeaker, having an electrostatic or panel quality without the drawbacks. Sound is reproduced effortlessly with incredible detail and pinpoint imagery, which often can be muddled by conventional drive units.
The K6 is designed for audiophiles and music lovers who are looking for a true high end loudspeaker offering smooth reproduction and an impressively flat response throughout the frequency range. The legendary ProAc qualities of large soundstaging and pin-sharp imaging capabilities complete a highly musical and engaging transducer.

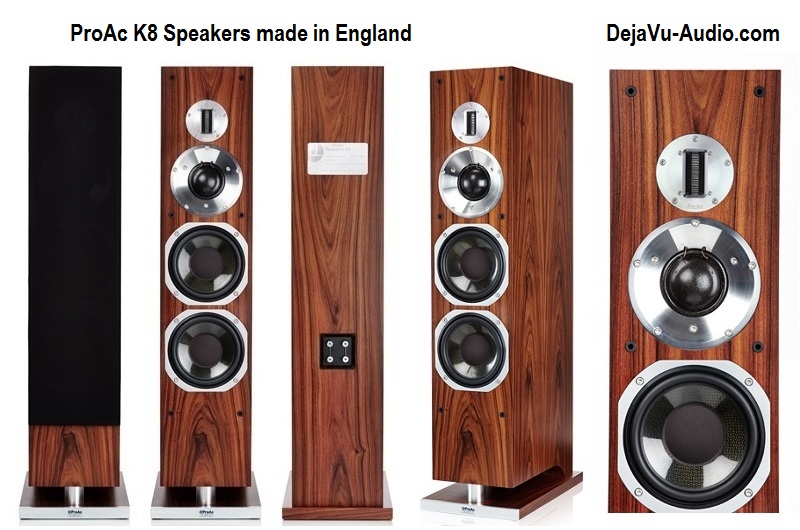

Proac K8 Loudspeakers
The ProAc K6 is one of our most successful designs and the plans to make a larger K8 have finally come to fruition.
The K8 uses a larger 8 inch bass driver than the K6, the cone is made from Kevlar weave material, then polished and concentrically weighted.
With a new wider cabinet, the midrange horn could now be redesigned. Stewart Tyler decided to make a very shallow midrange horn from billet aluminium. The midrange horn being very shallow gives excellent dispersion this widens the sound stage and reveals details right down to the finest brushed cymbal.
The ProAc ribbon tweeter is also used as it is in most of ProAc's high end speakers. The tweeters are wonderfully natural and fine detail is produced even at high levels with comfort.
The 8 inch Kevlar bass drivers are made in house these bass drivers are ported through a curved tude in the base of the loudspeaker.
On extensive listening tests it was noticed that the K8 had a wonderfully wide sound stage and image, mainly down to our new shallow horn. Also new was the crossover and a new board was designed with heavy tracking and only audio file components along with studio quality inductors.
The K8 is designed for those wishing to have a speaker from the top of the tree in terms of sound and build quality, this new design has produced a very large sound stage and along with clean and extended bass response and finished with our ribbon tweeter, I'm sure you will agree that their sounds are perfectly natural.
The K8 uses a larger 8 inch bass driver than the K6, the cone is made from Kevlar weave material, then polished and concentrically weighted.
With a new wider cabinet, the midrange horn could now be redesigned. Stewart Tyler decided to make a very shallow midrange horn from billet aluminium. The midrange horn being very shallow gives excellent dispersion this widens the sound stage and reveals details right down to the finest brushed cymbal.
The ProAc ribbon tweeter is also used as it is in most of ProAc's high end speakers. The tweeters are wonderfully natural and fine detail is produced even at high levels with comfort.
The 8 inch Kevlar bass drivers are made in house these bass drivers are ported through a curved tude in the base of the loudspeaker.
On extensive listening tests it was noticed that the K8 had a wonderfully wide sound stage and image, mainly down to our new shallow horn. Also new was the crossover and a new board was designed with heavy tracking and only audio file components along with studio quality inductors.
The K8 is designed for those wishing to have a speaker from the top of the tree in terms of sound and build quality, this new design has produced a very large sound stage and along with clean and extended bass response and finished with our ribbon tweeter, I'm sure you will agree that their sounds are perfectly natural.

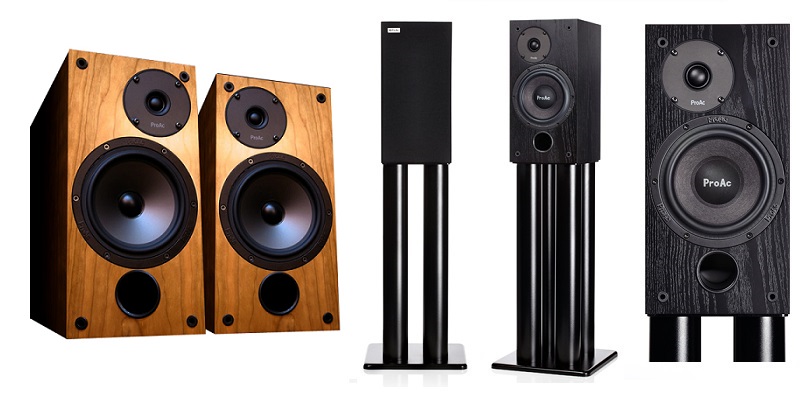

ProAc Studio SM 100 Speakers
The ProAc studio 100 was produced for over 20 years until 2013. They were made for both domestic and studio use. The studio 100 quickly became a favourite in the studios used as a near field monitor.
For the last 2 years Stewart Tyler has been working on a new speaker named the ProAc SM100 and all parameters have been improved for both studio and domestic use. It now has a new bass driver with a new surround and dust cap along with a brand new 1 inch domed tweeter and crossover network, however the cabinet remains the same.
The bass driver looks similar but has a new rubber surround for longevity and power handling and now comes in a ProAc basket. The tweeter is a new ProAc design with a 1 inch silk dome and a front plate to lower distortion, the dome has a new roll surround.
The SM100 also features a new crossover, the overall sound quality is similar to the studio 100 but slightly smoother sound makes it ideal for long listening sessions.
Finish: Standard Finishes: Black Ash, Mahogany, Cherry, Maple.
For the last 2 years Stewart Tyler has been working on a new speaker named the ProAc SM100 and all parameters have been improved for both studio and domestic use. It now has a new bass driver with a new surround and dust cap along with a brand new 1 inch domed tweeter and crossover network, however the cabinet remains the same.
The bass driver looks similar but has a new rubber surround for longevity and power handling and now comes in a ProAc basket. The tweeter is a new ProAc design with a 1 inch silk dome and a front plate to lower distortion, the dome has a new roll surround.
The SM100 also features a new crossover, the overall sound quality is similar to the studio 100 but slightly smoother sound makes it ideal for long listening sessions.
Finish: Standard Finishes: Black Ash, Mahogany, Cherry, Maple.

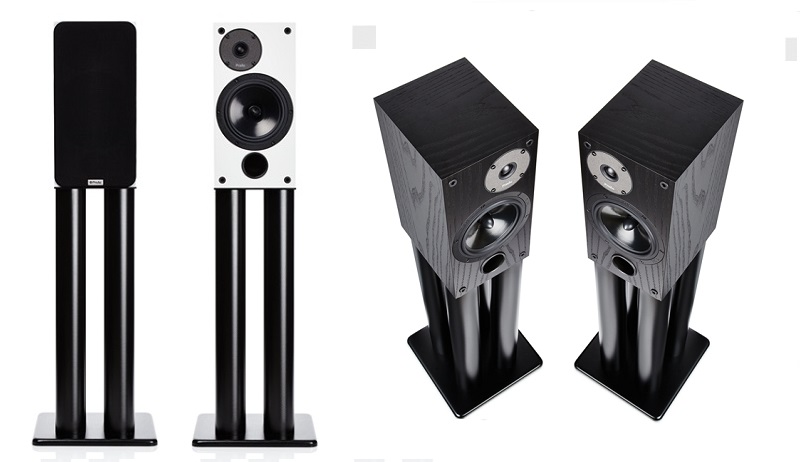

ProAc Studio SM 118 Speakers
The new studio 118 is a new stand mounting design. It comes in a variety of real wood veneers and the sound quality belies the size of the enclosure.
The 118 has a new bass driver, with a great deal of research into cone materials, the new 118 unit excels in bass and mid-range performance and is further helped by a phase plug. The bass driver is loaded through a port making a reflex design, it also has a new magnet assembly giving a better bass response with a more open and better dispersion on mid-range frequencies.
The tweeter has our iconic ProAc 20mm tweeter to cover high frequencies which it does in a sweet and detailed manner. A new crossover has been design to match the two units to give a wonderfully large sound stage with pinpoint imagery. The 118 is excellent on all types of music and more efficient than previous models, which make it suitable for lower powered valve and transistor amplifiers.
Finish: Standard Finishes: Black Ash, Mahogany, Cherry, Maple.
The 118 has a new bass driver, with a great deal of research into cone materials, the new 118 unit excels in bass and mid-range performance and is further helped by a phase plug. The bass driver is loaded through a port making a reflex design, it also has a new magnet assembly giving a better bass response with a more open and better dispersion on mid-range frequencies.
The tweeter has our iconic ProAc 20mm tweeter to cover high frequencies which it does in a sweet and detailed manner. A new crossover has been design to match the two units to give a wonderfully large sound stage with pinpoint imagery. The 118 is excellent on all types of music and more efficient than previous models, which make it suitable for lower powered valve and transistor amplifiers.
Finish: Standard Finishes: Black Ash, Mahogany, Cherry, Maple.

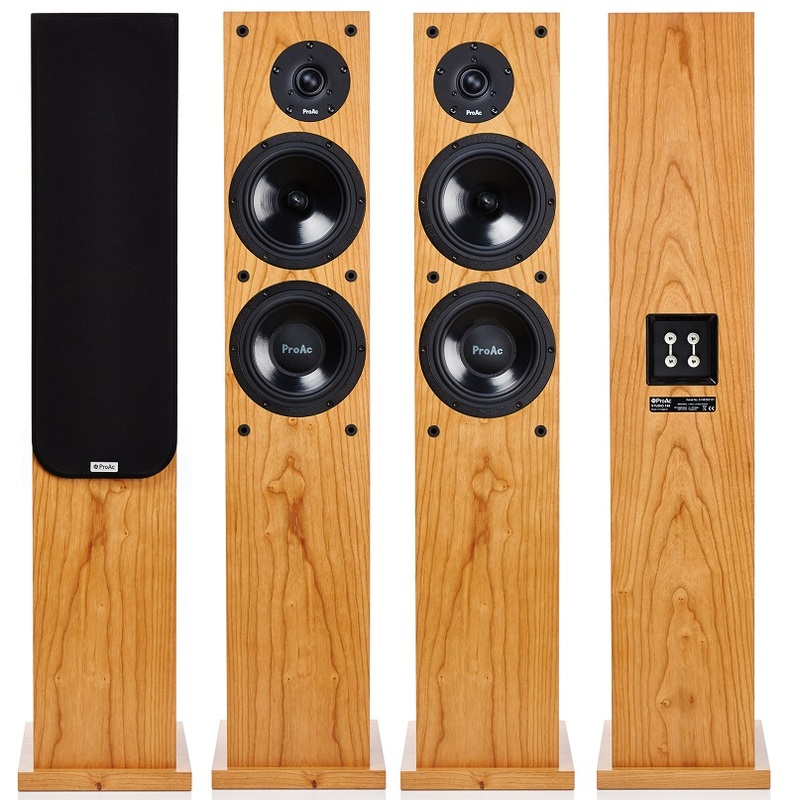

ProAc Studio 148 Loudspeakers
ProAc's latest the studio 148 is a narrow columnar design with a stabilising plinth and bass port pre-drilled for adjustable spikes. The beautiful and real wood veneers are impeccable making it suitable for all types of room design.
There are 3 drive units in each enclosure, the two 6.5 inch units cover bass frequencies but each one has been mechanically tuned to cover mid frequencies.
To improve dispersion the upper bass driver has a phase plug whilst the lower unit has a ProAc open weave cap. This gives the 148 tremendous bass power and depth with a clear precise mid range. The bass drivers crossover to the ProAc 1 inch silk dome tweeter used in many other ProAc models.
The bass drivers are loaded by a port in the bottom of the cabinet and through the plinth. Spikes are used to raise the cabinet allowing air to move under the enclosure and through the port. Improvements can be heard in all areas from a tight, cleaner and extended bass through a detailed mid-range with a sweet and detailed high frequency, the 148 also has a large spectacular sound stage with pin point imagery.
The studio 148 comes in a variety of real wood veneers and is above average for efficiency, meaning the use of small high quality valve amplifiers and transistor amplifiers.
To improve dispersion the upper bass driver has a phase plug whilst the lower unit has a ProAc open weave cap. This gives the 148 tremendous bass power and depth with a clear precise mid range. The bass drivers crossover to the ProAc 1 inch silk dome tweeter used in many other ProAc models.
The bass drivers are loaded by a port in the bottom of the cabinet and through the plinth. Spikes are used to raise the cabinet allowing air to move under the enclosure and through the port. Improvements can be heard in all areas from a tight, cleaner and extended bass through a detailed mid-range with a sweet and detailed high frequency, the 148 also has a large spectacular sound stage with pin point imagery.
The studio 148 comes in a variety of real wood veneers and is above average for efficiency, meaning the use of small high quality valve amplifiers and transistor amplifiers.
